Research / Sega's SVP Chip


I decided to document the Sega's SVP Chip. While many believe it's an SH1 or SH2, it's a Samsung SSP1601. I hope it'll help someone emulate the chip.

Unfortunately, I didn't find the instruction set yet.

Please contact me if you have more information on this mysterious IC.

The documentation:
1. Official chip description
2. List of features
3. Design tools
4. Pin layout - explained
5. Electrical characteristics

Images:

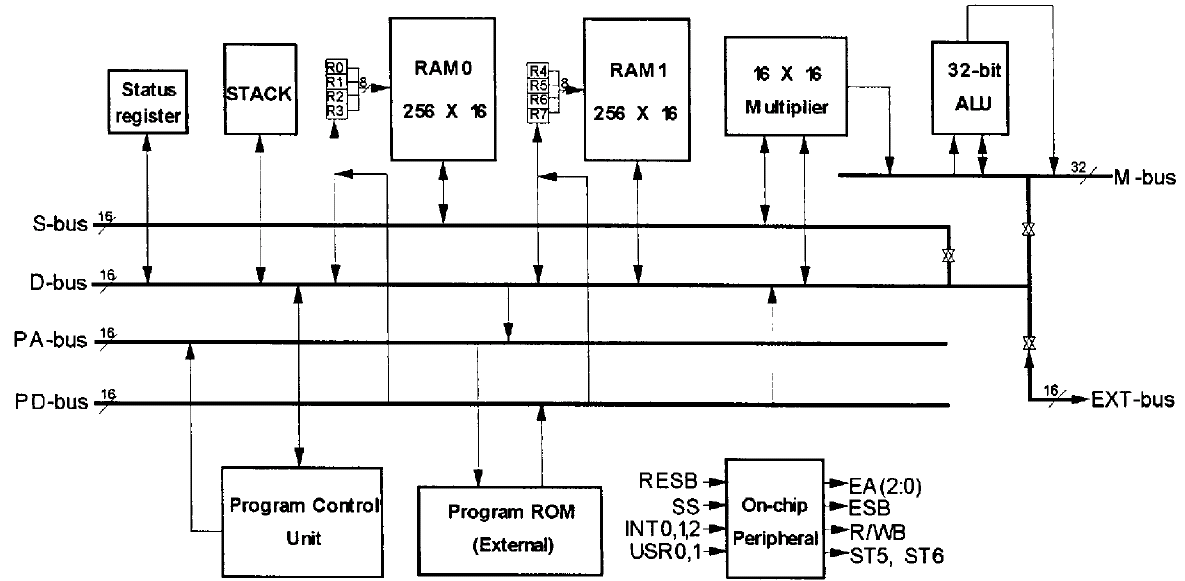

1. Block diagram

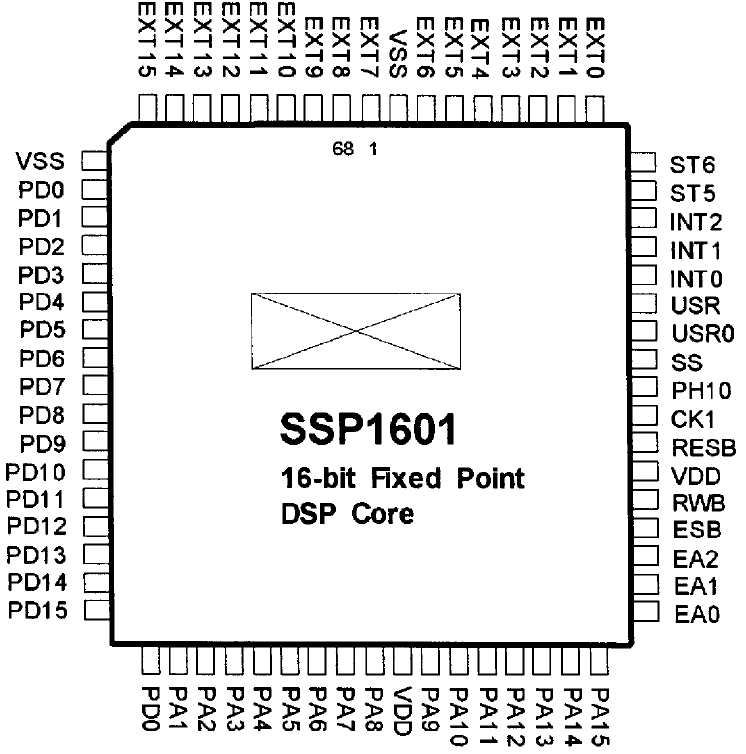

2. Pin layout
